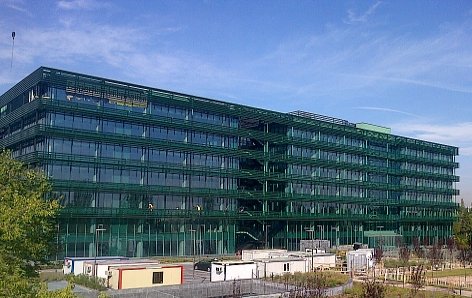

Complex in Avenida de América, 115 – Madrid

The office complex situated in Madrid comprises 5 office buildings and 2 communal garage floors. It occupies a total surface of 45,000 m² of offices and 30,900 m² of garage.
Imtech executed the HVAC for the offices with a VRV water-condensing system and for the communal areas installed compact water-condensing equipment.
Each one of the building’s floors is divided into 4 offices with independent air conditioning and ventilation and communal extraction.
The centralised control comprises 2 systems that on one hand manage the production of tempered water and electricity in communal areas and on the other manages the VRV units.
A ventilation and CO-detection installation has been executed in the garages. 5 ventilation hubs have been fitted, which coincide with the 5 buildings, with fans installed in the roof of each one of them and a central hub for the interior zone of the complex.
